August 2019

After some time juggling with paper images of the gauges and buttons I finally decide on a layout for the dash.

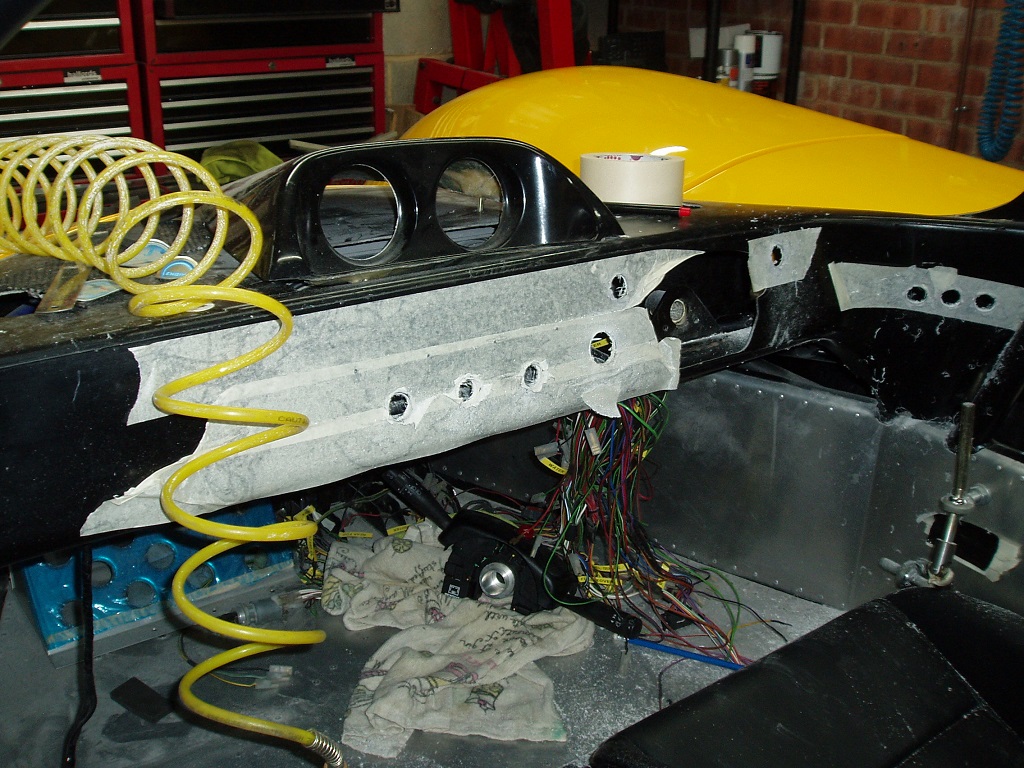

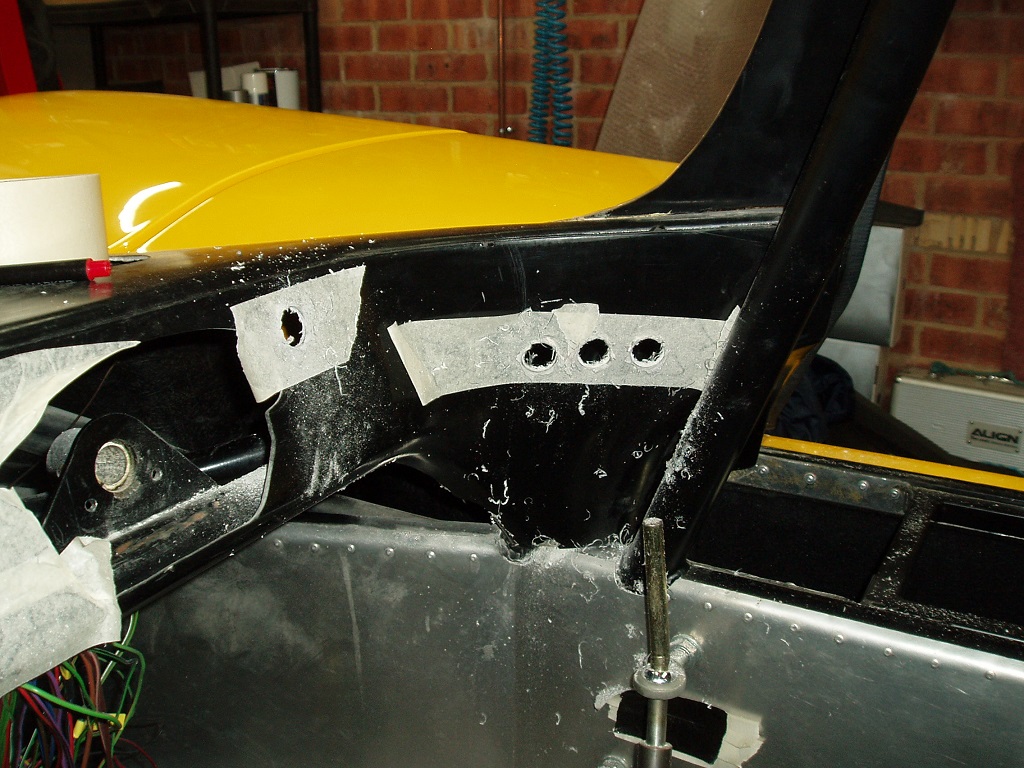

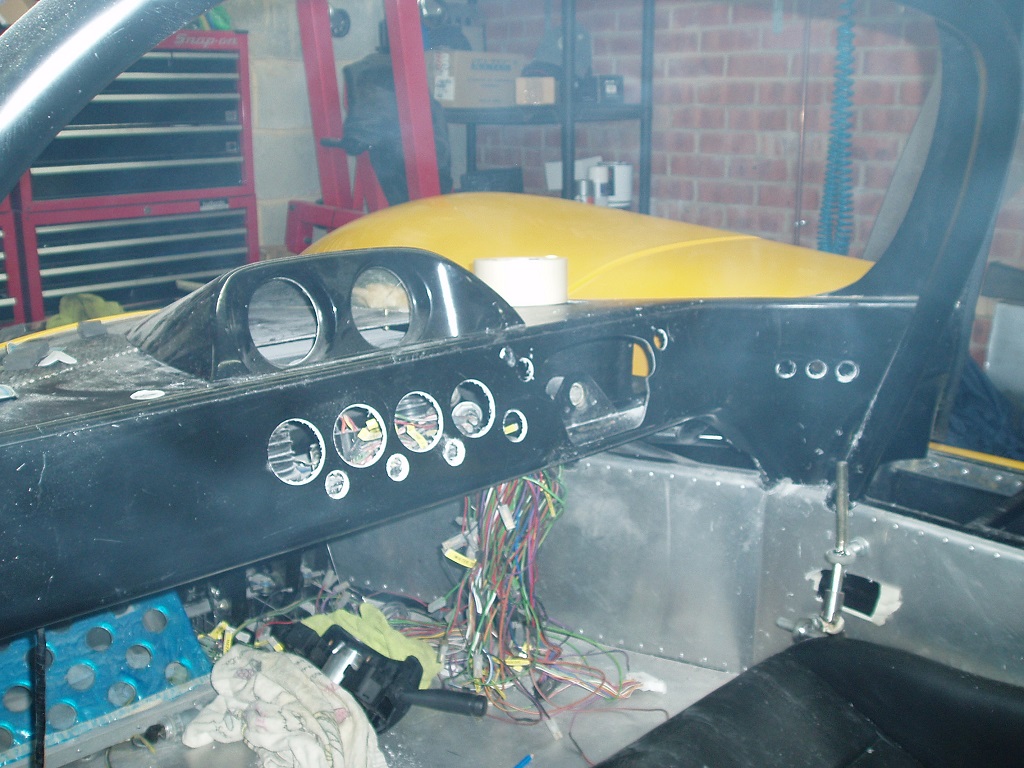

I drill the holes with a step drill for the buttons and a hole saw for the gauges. Final sanding to size was done with a sanding wheel in the drill.

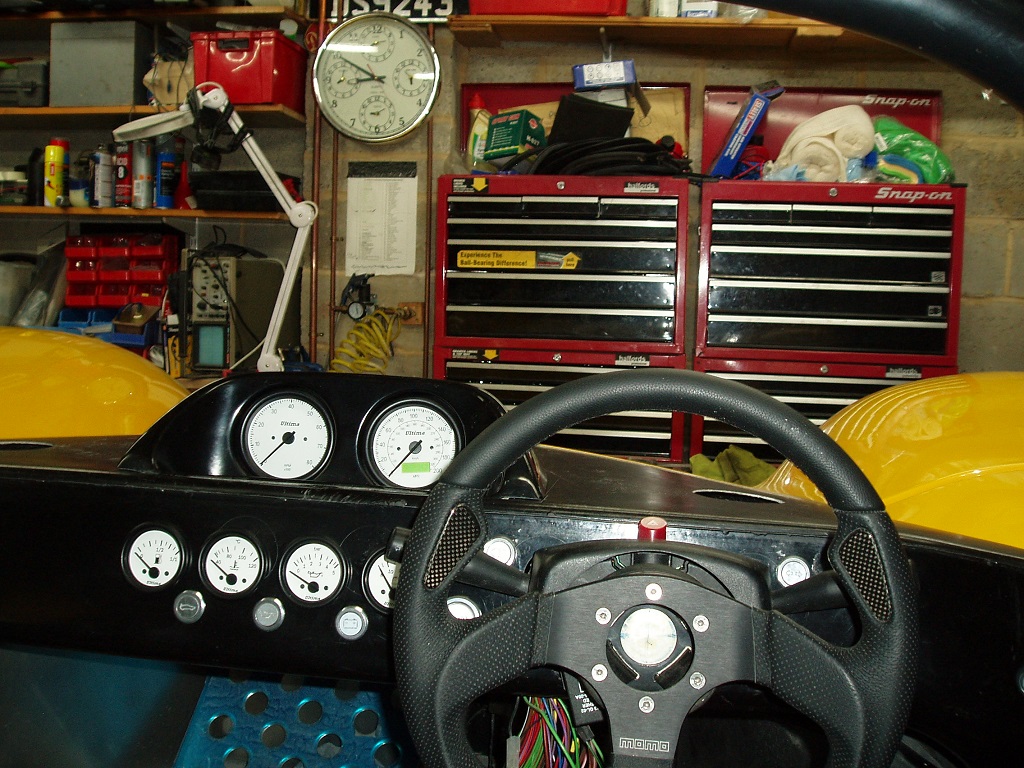

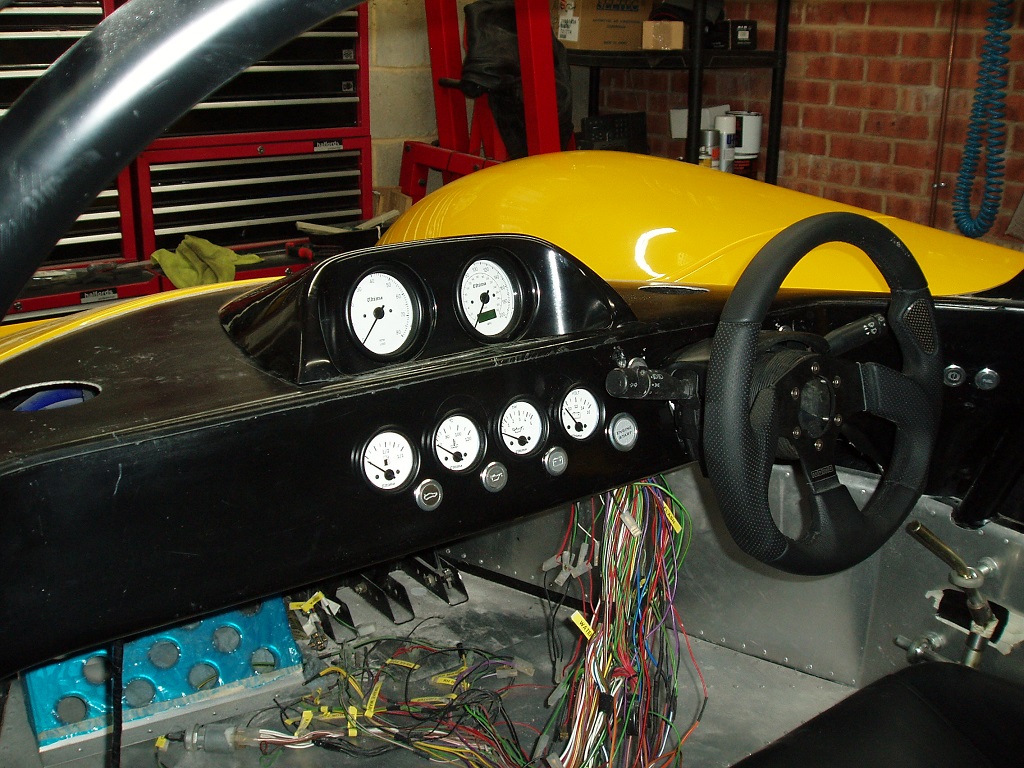

I test fit the gauges and switches for a visual check although if I didn't like there would a lot of work to correct it.

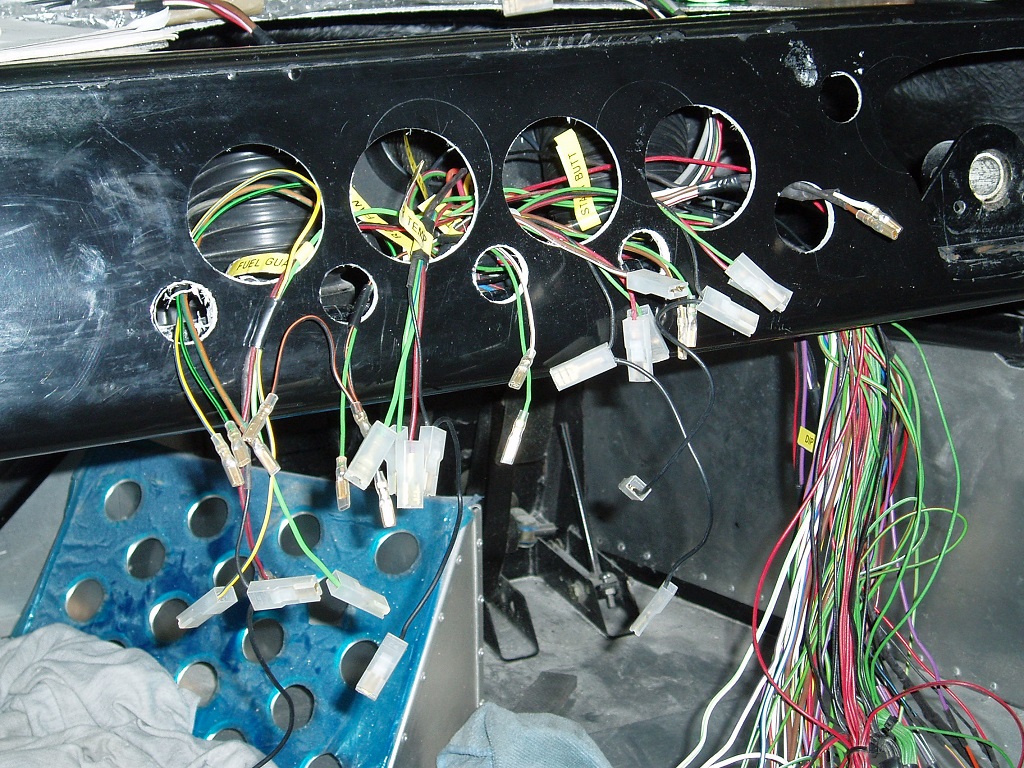

The loom has to be unravelled to reach some of the buttons, some cables need to be extended and new connectors fitted to match the Billet switch blocks.

Later when I remove the tub to fit the throttle position sender I will tidy up the harness with some fresh looming tape as well as giving it a deep clean before finally securing the body work..
