November 2014

I have the later LED lamps for the rear, but the main wiring loom is for the earlier non-LED lamps.

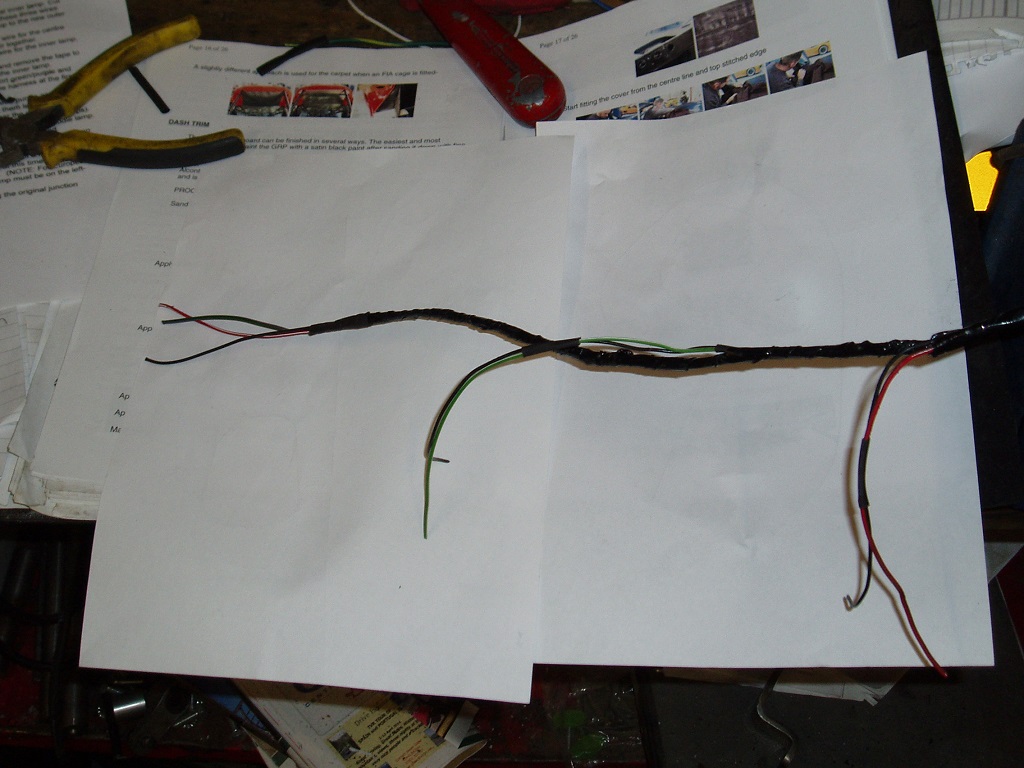

The instructions provided by Ultima are straight forward to follow, effectively some wires change place and need lengthening or shortening.

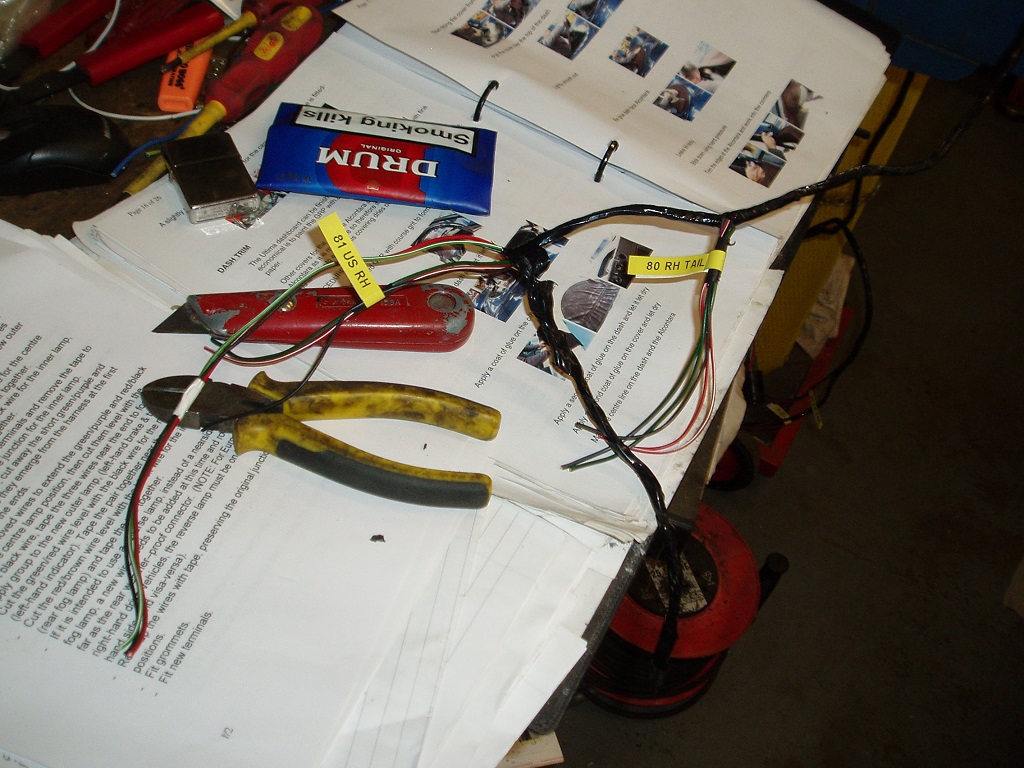

The loom tape needs to be removed back sufficiently to allow this rework.

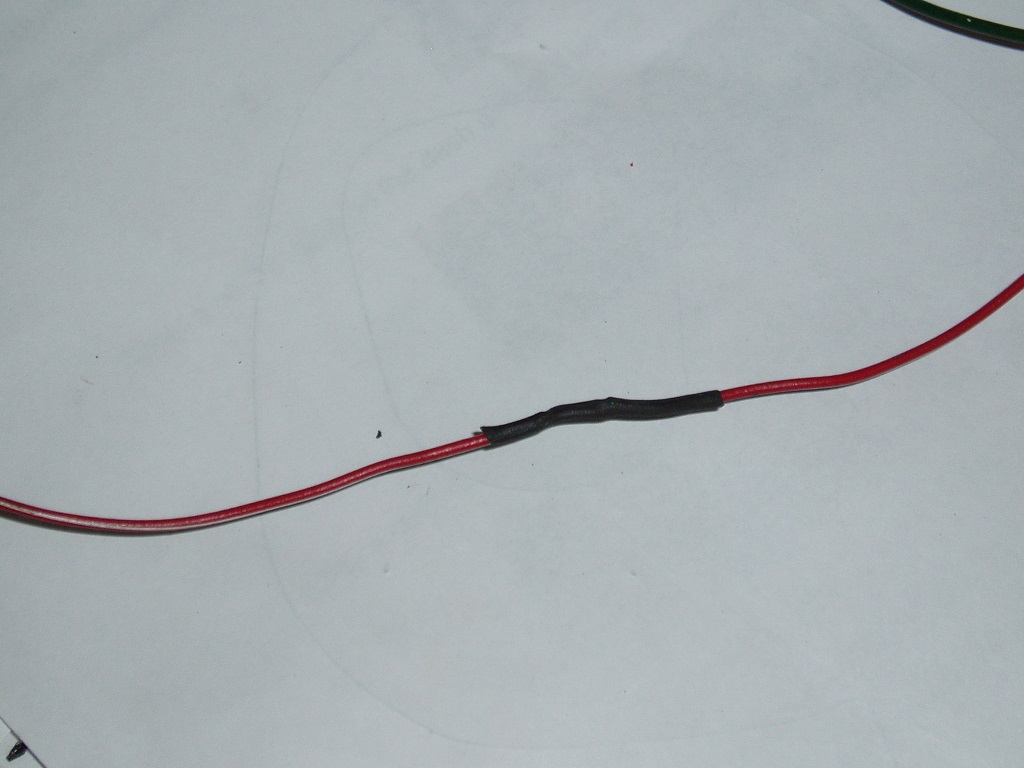

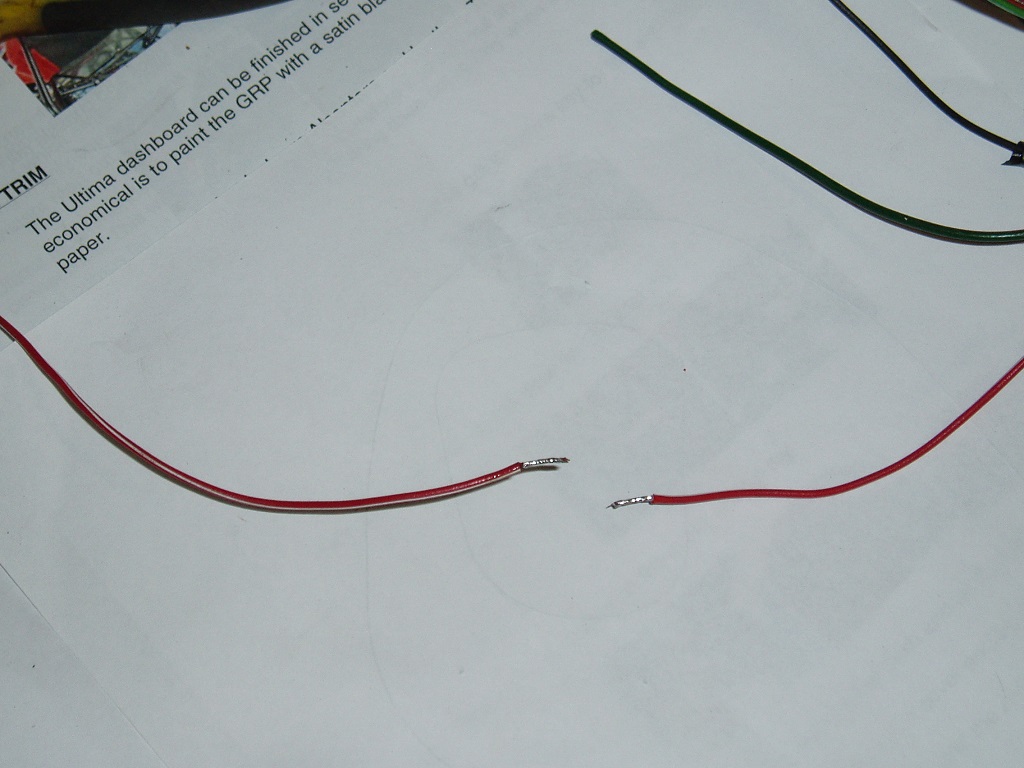

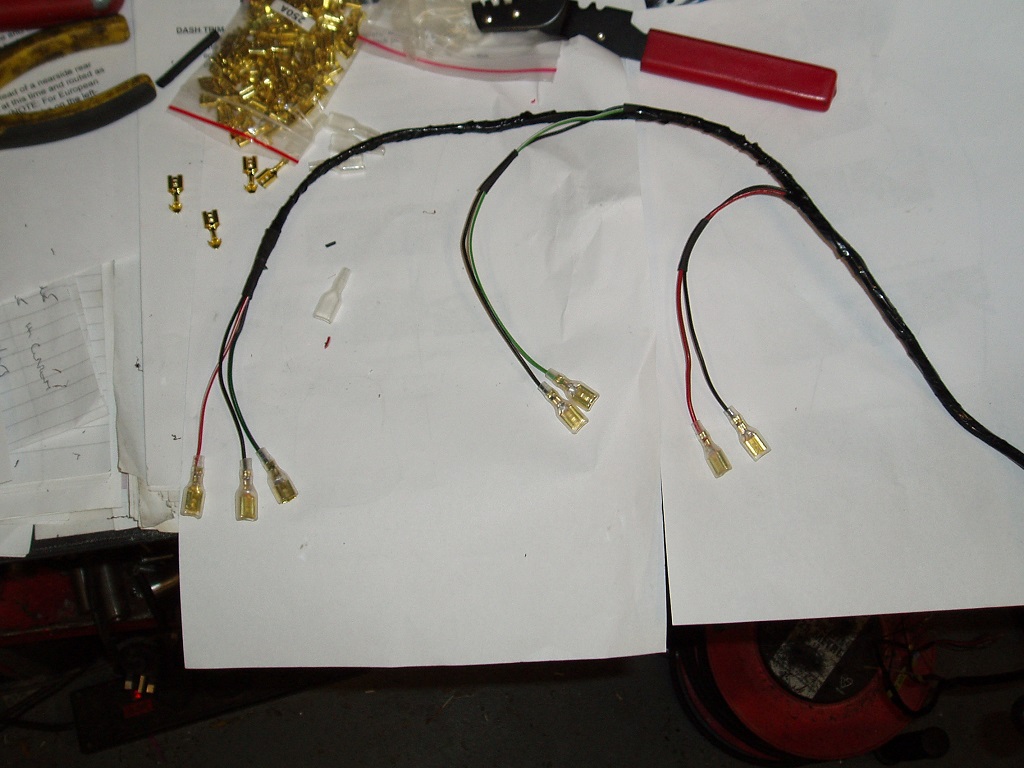

All joins were soldered and then insulated with some heat shrink sleeve and then all cables need new connectors crimped to the ends.
